500mm Sage Fluted Cloakroom Vanity Unit — Two-Drawer Wall-Hung — FAME bathroom cabinet manufacturer
New 2026 · UK Cloakroom 500 mm · Fluted Front · Wall-Hung

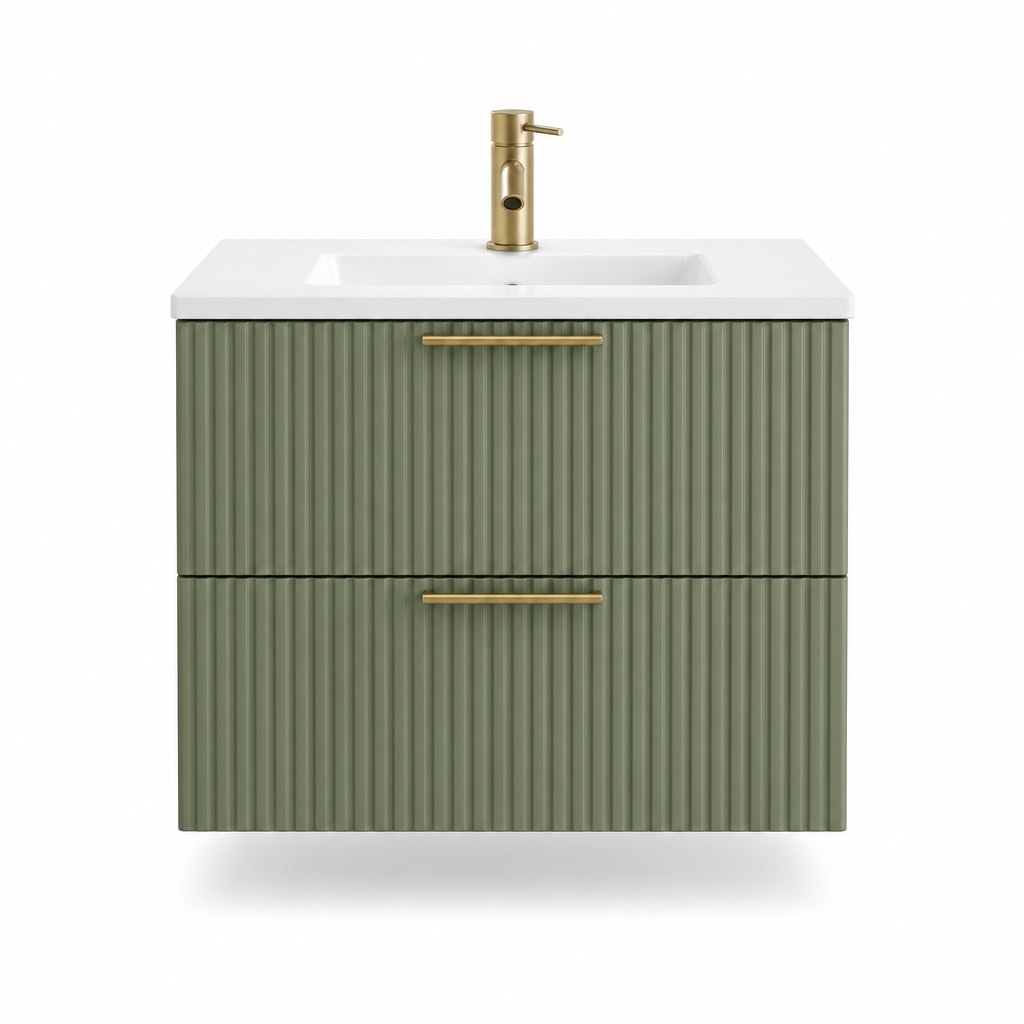

500mm Sage Fluted Cloakroom Vanity Unit — Two-Drawer Wall-Hung

UK bathrooms are the smallest in the markets we serve, and 2026 selling is happening in the two spaces that used to be an afterthought: the ground-floor cloakroom under the stairs and the en-suite squeezed beside a bedroom. Both are narrow, both are interior walls, and both need a unit that hangs rather than stands. 500 mm is the width that fits those rooms — wide enough for a usable basin, narrow enough to leave the door swing clear — and it is the size UK retailers keep asking for in sage green with a fluted front and brushed brass fittings. This is that unit. It is wall-hung on a concealed bracket, so the floor stays open and the room reads bigger; the front is a fine vertical fluted (ripple) pattern in matt sage green, which is the finish family that has displaced gloss white in UK specifications, finished with brushed brass bar handles that stay warm-toned rather than turning to a chrome mirror. The carcass is moisture-sealed plywood with sealed interior and back panels — not particleboard, which is what fails first in a small, poorly ventilated UK cloakroom. The top is a slim white engineered stone with a white ceramic basin set flush into it, so there is no rim standing proud to collect water, and the deck is drilled for a UK-spec brass mono mixer tap. Two soft-close drawers on full-extension runners give the storage a cloakroom actually needs, with a siphon recess cut into the lower box. MOQ is 20 pieces per model, and because the same front tooling runs 600 mm and 800 mm versions, a full UK size ladder quotes as one programme rather than three suppliers.

  • 500 mm (19-5/8 in) wide — the UK cloakroom and en-suite width that clears the door swing while still taking a usable basin
  • Matt sage-green front with fine vertical fluted (ripple) ribbing — the finish family displacing gloss white in UK 2026 specifications
  • Brushed brass bar handles on both drawers — warm-toned fittings that hold their colour, not a chrome-effect substitute
  • Wall-hung on a concealed bracket, so the floor stays clear and a small room reads larger; no legs and no plinth to clean around
  • Slim white engineered-stone top with the white ceramic basin set flush — no proud rim for water or cleaner to sit against
  • Two soft-close drawers on full-extension runners, with the siphon recess cut into the lower box; siphon and waste kit supplied
  • Moisture-sealed plywood carcass with sealed interior and back panels — no unsealed particleboard edges for a small UK cloakroom to swell
  • Deck drilled for a UK-standard mono mixer tap; brushed brass tap available on the same order for finish matching
  • Blum soft-close hinges and runners available as an upgrade on the same drilling pattern, with Hettich and DTC as alternatives
  • Same fluted front tooling runs 600 mm and 800 mm versions, so a full UK size ladder quotes as one programme at 20 pcs MOQ per model
Request Factory Quote Back to All Bathroom Cabinets

SKU: FAME-UK-0929 · MOQ: 20 pcs · Sample order available

Specifications

Sizes500 mm (19-5/8 in) wide x 380 mm (15 in) deep as standard; 600 mm and 800 mm versions tooled from the same fluted front; 850 mm counter height as standard, with 800 mm and 900 mm tooled on request
ConstructionMoisture-sealed plywood carcass — no particleboard; sealed interior and back panels; sealed edge banding on every panel edge
Front / door styleFine vertical fluted (ripple) ribbing applied to a solid-core drawer front; rib pitch held consistent between the 500 / 600 / 800 mm widths so a size ladder matches on the wall
FinishMatt sage green as standard; matt white, matt black, matt navy and warm oak are available across the same front tooling
TopSlim white engineered stone, approx. 20 mm; a matching upstand is available instead of the standard slim profile
BasinWhite ceramic basin set flush into the top with no proud rim; one-tap deck drilled for a UK-standard mono mixer; overflow and waste kit supplied
StorageTwo soft-close drawers stacked vertically on full-extension runners, each with one brushed brass bar handle; siphon recess cut into the lower drawer box
HardwareBlum soft-close runners available as an upgrade on the same drilling pattern; Hettich and DTC available as alternatives; all fixings supplied
InstallationWall-hung on a concealed steel hanging bracket; wall reinforcement or suitable fixings required — a fixing guide is supplied with each order
Mirror (optional)Matching slim-framed or frameless mirror and a wall cabinet in the same finish and grain direction, quotable on the same purchase order
ComplianceISO9001, CE, SGS, IP44 and FSA; certificate scans and SGS inspection reports issued with your quotation on request
PackingSemi-assembled or knock-down, foam-lined carton with corner and edge protection; container load plan supplied against your size and finish mix
MOQ20 pieces per model; widths and finishes can be mixed within one order. Sample orders welcome for pre-production evaluation

Verification & Compliance — Evidence Behind Every Claim

Every FAME unit is built and inspected to the same standards we ship to the world's top-10 bathroom brands. Each claim below carries a verifiable anchor — certificates and inspection reports are available for review on request or during factory audits.

ISO9001 Quality management system CE EU conformity marking SGS Third-party inspected IP44 Splash & moisture resistance per IEC 60529 FSA Forest & safety assurance
IP44 moisture protectionRated to IEC 60529 (splash-proof, protection against objects >1mm). Test method and report available on request.
Soft-close hardwareBlum optional — see Blum official specifications.
Company credentialsFounded 2008 · 20,000 m² factory · supplier to global top-10 bathroom brands. See About FAME and Certifications.
Third-party verificationSGS inspection reports and certificate scans available with your quotation — request them here.

In a Real Bathroom

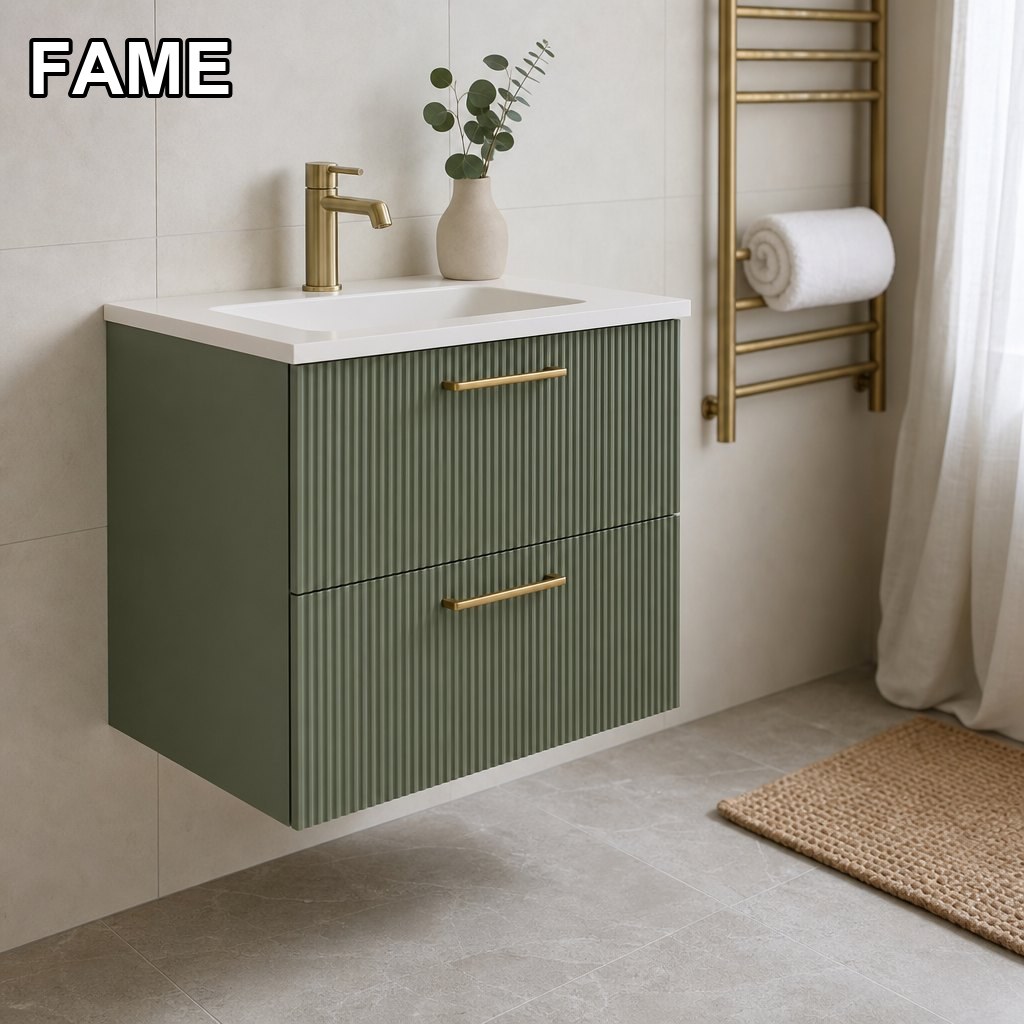

500mm Sage Fluted Cloakroom Vanity Unit — Two-Drawer Wall-Hung in a real bathroom setting

Every FAME unit is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.

Product FAQ

Why 500 mm, and will it take a usable basin?
500 mm is the width that makes a UK cloakroom work: it clears the door swing in a room that is often only 900–1000 mm wide, and it is narrow enough to sit beside the WC without crowding it. The basin is a full-depth white ceramic bowl set flush into the top rather than a reduced cloakroom-only insert, so it is genuinely usable for hand washing — which is the whole point of the room. If your programme needs a slightly wider unit for a family en-suite, the same fluted front is tooled at 600 mm and 800 mm, so all three widths can be combined in a single order at a 20-piece MOQ per model.
What makes the carcass suitable for a small, poorly ventilated UK cloakroom?
The carcass is moisture-sealed plywood with sealed interior and back panels and sealed edge banding on every panel edge, rather than particleboard. In a small UK cloakroom or en-suite the humidity has nowhere to go, and an unsealed cut edge is the first thing to swell and delaminate — which is exactly what generates warranty claims and returns in this size band. Sealing the edges is a small cost at our end and it is the difference between a unit that survives a decade and one that fails in the second winter.
Is the tap included, and what drilling does the top come with?
The top is drilled as standard for a UK-standard mono mixer on a single-tap deck, so your customer can fit the tap they already sell. A brushed brass mono mixer in the same tone as the drawer handles can be supplied on the same order for finish matching, and if your programme uses a different drilling pattern tell us before production and we cut it to your market standard. Because the top is engineered stone, the hole is cut and polished in the factory, so there is no chipping risk at the rim and no on-site stone work.
How does the wall-hung fixing work, and what does the fitter need?
The unit hangs on a concealed steel bracket supplied with every order, so nothing is visible once it is up and the floor stays clear. The wall behind must be capable of taking the loaded weight — a masonry wall, or a stud wall with suitable reinforcement behind the cabinet position. We supply a fixing guide with each order that states the weight, the bracket position and the minimum fixing specification, so the installer can plan the wall before the unit arrives rather than improvising on the day.
Can we order this in a different colour or with a different handle?
Yes. The same fluted front runs in matt white, matt black, matt navy and warm oak as well as the standard matt sage green, and handle style, length and finish can be changed without altering the cabinet. Because the fluting is applied to a solid-core front rather than a thin veneer, colour changes do not change the profile, so a range built across several finishes still reads as one family on a showroom wall. Send us your colour references and we will match them on a sample front for approval before production.
What is the MOQ, and which documents ship with a UK order?
MOQ is 20 pieces per model, sizes and finishes can be mixed within one order, and samples are welcome before you commit to a run. Hangzhou Fame Industry Co., Ltd. was founded in 2008, runs a 20,000 m2 factory in Zhejiang, and has supplied global top-10 building-material brands; we hold ISO9001, CE, SGS, IP44 and FSA certification. Certificate scans and SGS inspection reports are issued with your quotation or with the shipment — email tong@famechina.com or message WhatsApp +852 6159 8571, and our Hong Kong office at Room 1510, 54 Hoi Yuen Road, Kwun Tong is available for UK and EU buyers who want to review a sample in person.
