Classic Shaker Kitchen Set
The wide-frame shaker this door profile is derived from — 70 mm frame, same carcass system.
View product →
Black cabinetry fails for one of two reasons: the door profile is too wide, so a full run reads as heavy panelling, or the finish is a gloss that turns every fingerprint and every reflection into noise. The slim shaker answers the first — a 20 mm frame instead of the 70 mm of a classic shaker keeps the shadow line fine and lets the door read as a plane with an edge rather than a picture frame. The matte lacquer answers the second: a 3 to 5 gloss unit surface scatters light instead of mirroring it, which is why a black kitchen in this finish stays calm under a window. Brass is the part that stops it going cold, and it is fitted as slim 12 mm bar pulls rather than cup handles so the horizontal rhythm of the run is not broken.
SKU: FAME-KC-MBK · MOQ: 20 pcs · Sample order available

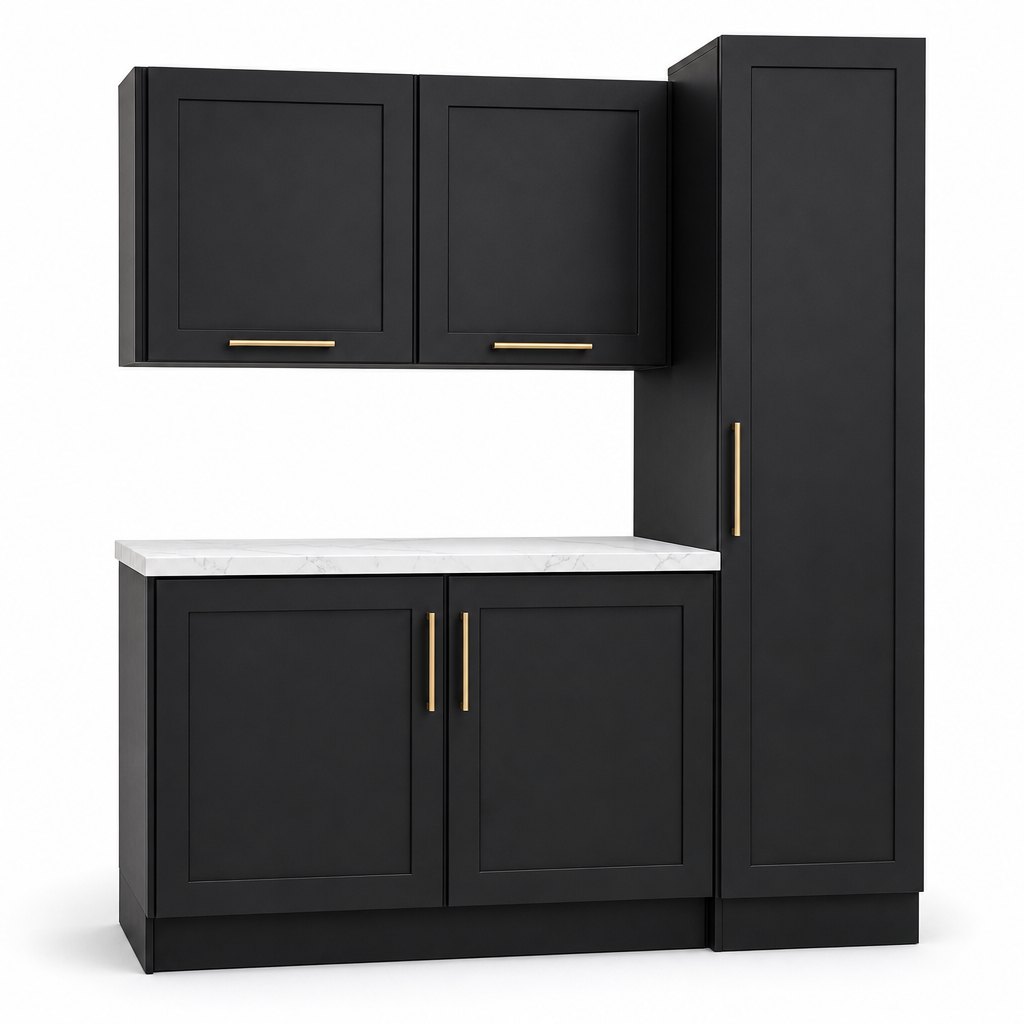

| Programme scope | Full kitchen cabinet set — base units, wall units and one tall unit — on a single slim-shaker door, carcass, hinge and colour programme; supplied as flat-packed or assembled |
|---|---|
| Door construction | 18 mm MDF, 20 mm raised slim-shaker frame with a 6 mm recessed centre panel; 22 mm door option for wide pan drawers over 900 mm |
| Finish | Matte black lacquer at 3 to 5 gloss units, two-coat polyurethane system; super-matte at 2 gloss units and custom RAL on request from 50 pcs per colour |
| Carcass | 18 mm waterproof plywood with sealed ABS edges as standard for export, or 18 mm E1 low-emission MFC; 8 mm back panel, 32 mm system drilling, adjustable legs or fixed plinth |
| Worktop | 20 mm white quartz with a fine grey vein, 600 mm depth, straight square edge, 40 mm upstand; sintered stone, compact laminate and solid-surface alternatives on the same template |
| Hardware | Blum soft-close 110 degree concealed hinges with three-way adjustment; full-extension soft-close runners rated 30 kg; brushed brass slim bar pulls at 12 mm diameter, 160 and 320 mm centres |
| Internal fit-out | Adjustable 18 mm shelves on a 32 mm system, cutlery inserts, pan-drawer dividers, pull-out waste bin and corner carousel all available on the same carcass |
| Standard dimensions | Base 600 mm deep x 720 mm carcass height (870 mm with worktop and plinth); wall units 350 mm deep x 720 mm high; tall unit 600 mm wide x 2100 mm high; widths in 300 / 400 / 500 / 600 / 800 / 900 mm modules |
| Installation | Cam-and-dowel flat-pack with a click-on leg system, or fully assembled and crated; adjustable wall hanging bracket with a 20 mm levelling range; all fixings and a fitting sequence sheet supplied |
| Packaging | Flat-packed in 5-layer cartons with foam edge protection, one carton per cabinet module; a standard 3 m run ships as roughly 1.1 cbm at 95 kg gross; assembled orders are crated and palletised |
| MOQ and lead time | 20 pcs per model (mixed modules and colours allowed within the 20); sample door 7 to 10 days, production 30 to 35 days, FOB Ningbo or CIF to the destination port |
| Compliance | ISO9001, CE, SGS and FSA factory certifications; E1 low-emission board with test reports; FSC-certified plywood and low-VOC lacquer available on request |
Every FAME kitchen program is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.
Tell us layout, finish and destination port — we'll come back with pricing, lead time and a sample proposal.
Request a Quote
