800mm Wood-Grain Aluminium Floating Vanity — Warm Walnut Effect, LED Mirror — FAME bathroom cabinet manufacturer
New 2026 · Chile Compact 800 mm · Wood-Grain Aluminium · LED Mirror

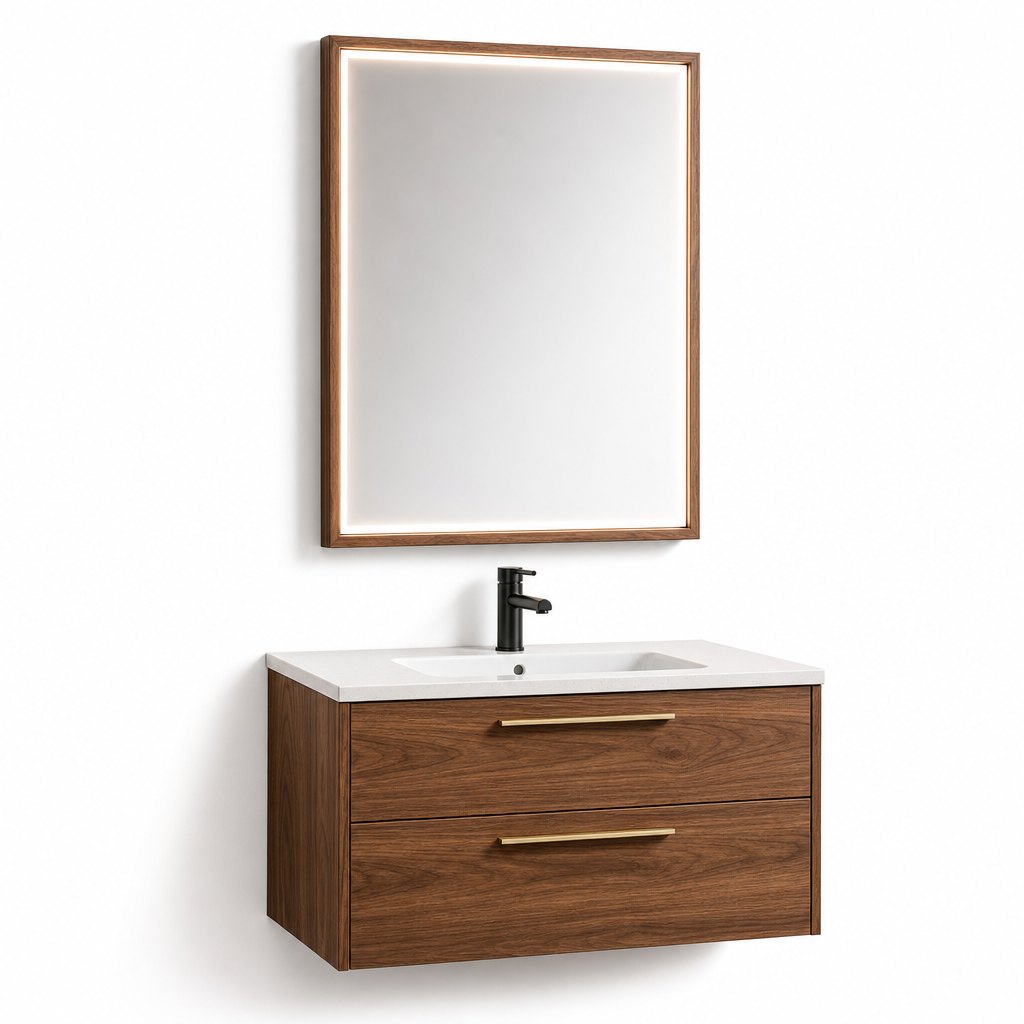

800mm Wood-Grain Aluminium Floating Vanity — Warm Walnut Effect, LED Mirror

The brief we keep getting from Chilean importers in 2026 is short: a floating unit that fits a compact apartment bathroom, reads as warm wood rather than grey board, and survives the humidity of a coastal city. Those three requirements pull against each other, because the material that survives humidity — sealed board, PVC, aluminium — is also the material that usually looks like a utility cabinet rather than a piece of furniture. This 800 mm unit is our answer to that. The carcass and both drawer fronts are an extruded aluminium body with sealed welded corners and a cured wood-grain powder coat, so there is no raw board edge anywhere in the wet zone for moisture to reach, and nothing that rusts in salt air — but the surface you actually see is a warm walnut-effect grain, not bare metal. 800 mm is the width that suits a Chilean apartment: wide enough for a genuinely usable basin and two full-width drawers, narrow enough to keep the door swing and the floor clear. Two soft-close drawers on full-extension runners give the storage, each with one slim brushed-brass bar handle as the only deliberate metal in the composition, and the matching mirror above carries the same wood-grain frame so the pair reads as one piece on the wall. MOQ is 20 pieces per model, and because the same body tooling runs 600 mm through 1200 mm, an importer can quote a full Chilean size ladder as one programme instead of three suppliers.

  • 800 mm (31.5 in) wide x 480 mm deep — the compact apartment width that clears the door swing while still taking a full-size basin and two usable drawers
  • Extruded aluminium body and drawer fronts with sealed welded corners and a cured wood-grain powder coat — no timber or particleboard cut edge in the wet zone, so nothing swells or delaminates in a bathroom or along a humid coast
  • Warm walnut wood-grain finish as standard; lighter oak-effect and matte white finishes run from the same tooling
  • Two stacked full-width soft-close drawers on full-extension runners, each with one slim brushed-brass bar handle
  • Slim white engineered-stone top, approx. 20 mm, with a white glazed ceramic basin set flush — no proud rim for water, soap or cleaner to sit against
  • Matching tall mirror in the same wood-grain frame, LED backlit with touch switch, anti-fog and 3 colour temperatures
  • Wall-hung on a concealed steel bracket supplied with every order — the floor stays clear and the room reads larger
  • Blum soft-close hinges and runners available as an upgrade on the same drilling pattern, with Hettich and DTC offered as alternatives
  • Siphon recess cut into the lower drawer box; waste kit and drainer supplied in stainless steel or brass to match the handles
  • 600 / 700 / 800 / 900 / 1000 / 1200 mm versions tooled from the same body — full size ladders on one purchase order at 20 pcs MOQ per model
Request Factory Quote Back to All Bathroom Cabinets

SKU: FAME-CL-1001 · MOQ: 20 pcs · Sample order available

Specifications

Sizes800 mm (31.5 in) wide x 480 mm (19 in) deep as standard; 600 / 700 / 900 / 1000 / 1200 mm versions tooled from the same body; 850 mm counter height as standard, with 800 mm and 900 mm available on request
ConstructionExtruded aluminium cabinet body and drawer fronts with sealed welded corners and a cured wood-grain powder coat inside and out — no timber or particleboard cut edge in the wet zone
Front / drawer styleTwo stacked full-width drawer fronts in a flat wood-grain finish; one slim horizontal brushed-brass bar handle per drawer; handleless push-open fronts available as an option
FinishWarm walnut wood-grain as standard; lighter oak-effect, greige and matte white finishes available across the same tooling
TopSlim white engineered stone, approx. 20 mm thick with a small even overhang; sintered stone and natural stone-look alternatives available
BasinWhite glazed ceramic basin set flush into the top with no proud rim; drilled and cut in the factory; overflow and waste kit supplied
MirrorMatching tall rectangular mirror in the same wood-grain frame; LED backlit with touch switch, anti-fog and 3 colour temperatures, or a plain non-LED version
StorageTwo stacked soft-close drawers on full-extension runners; siphon recess cut into the lower drawer box so the pipework clears the runner
HardwareBlum soft-close runners and hinges available as an upgrade on the same drilling pattern; Hettich and DTC available as alternatives; all fixings supplied
Tap (not bundled)Single-hole deck drilled at the factory; the tap is normally nominated by the importer — send us the tap you intend to sell and we cut and drill the deck to suit it, so there is no on-site stone work
InstallationWall-hung on a concealed steel hanging bracket; masonry or suitably reinforced stud wall required — a fixing guide stating unit weight and minimum fixing spec is supplied with each order
ComplianceISO9001, CE, SGS, IP44 and FSA; certificate scans and SGS inspection reports issued with your quotation on request
Warranty5-year structural warranty available on request for programme orders
PackingSemi-assembled or knock-down, foam-lined carton with corner and edge protection; container load plan supplied against your size and finish mix
MOQ20 pieces per model; widths and finishes can be mixed within one order. Sample orders welcome for pre-production evaluation

Verification & Compliance — Evidence Behind Every Claim

Every FAME unit is built and inspected to the same standards we ship to the world's top-10 bathroom brands. Each claim below carries a verifiable anchor — certificates and inspection reports are available for review on request or during factory audits.

ISO9001 Quality management system CE EU conformity marking SGS Third-party inspected IP44 Splash & moisture resistance per IEC 60529 FSA Forest & safety assurance
IP44 moisture protectionRated to IEC 60529 (splash-proof, protection against objects >1mm). Test method and report available on request.
Soft-close hardwareBlum optional — see Blum official specifications.
Company credentialsFounded 2008 · 20,000 m² factory · supplier to global top-10 bathroom brands. See About FAME and Certifications.
Third-party verificationSGS inspection reports and certificate scans available with your quotation — request them here.

In a Real Bathroom

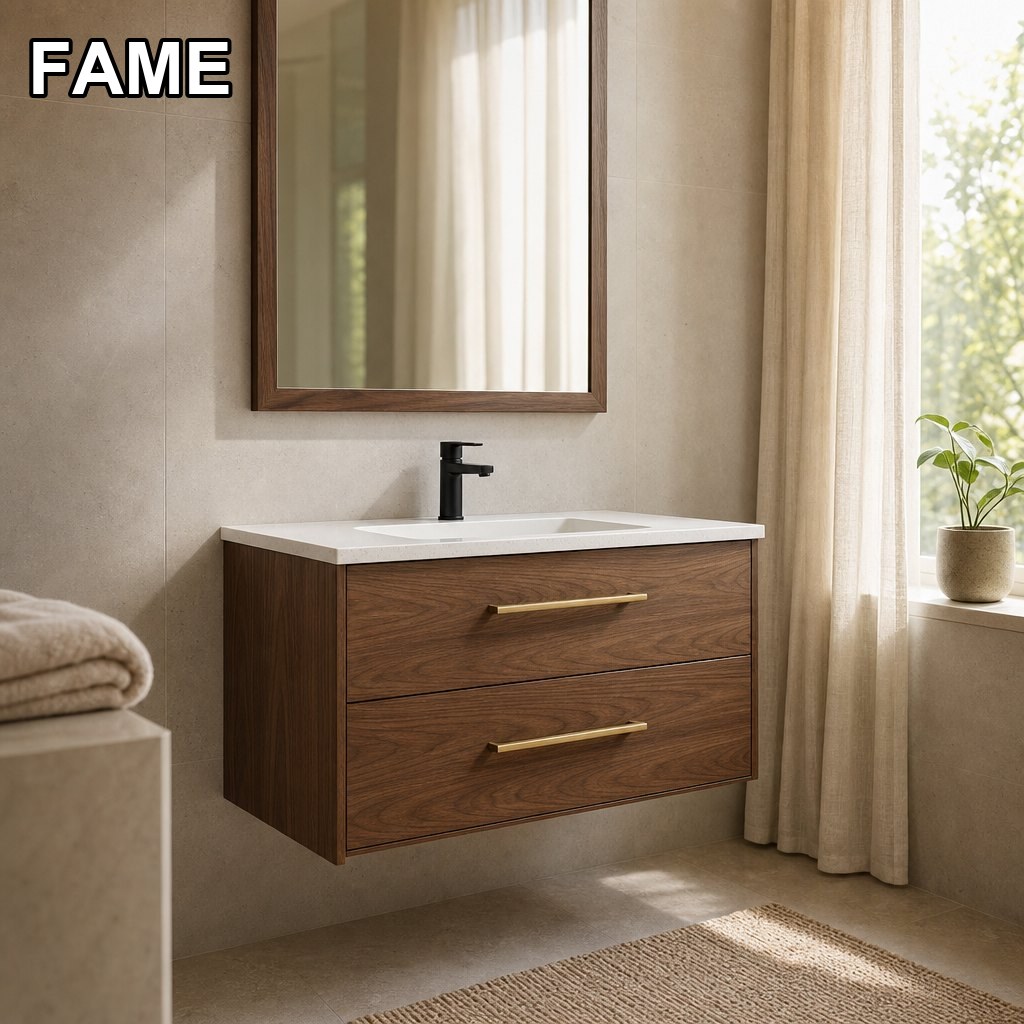

800mm Wood-Grain Aluminium Floating Vanity — Warm Walnut Effect, LED Mirror in a real bathroom setting

Every FAME unit is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.

Product FAQ

Why an aluminium body with a wood-grain finish instead of solid wood or sealed board?
Because the Chilean market asks for two things that normally exclude each other — the look of warm wood, and a body that survives humidity. Solid wood and sealed panels both fail at the same point: the edge. Once a cut edge or a seal is broken in transit or on site, the core takes on moisture and the panel swells, and on the coast the salt air keeps working on that spot long after the bathroom has dried. An extruded aluminium body with sealed welded corners removes the failure mode, because there is no core to absorb water and no edge to lift, and the metal cannot rust. The wood look then comes from a cured wood-grain powder coat rather than a veneer, so it cannot peel. If your programme is inland and cost-sensitive, we quote sealed plywood or full PVC on the same profile — tell us the region or city the order ships to and we recommend the right body for it.
Will the wood-grain finish look like a photograph printed on metal?
No — it is a cured powder coat with a grain registered into the finish, not a printed sticker, and the drawer fronts are flat full-width panels so the grain runs continuously across the face rather than meeting at awkward joints. The result reads as a warm walnut-toned cabinet surface in daylight and under artificial light, which is what buyers respond to in a showroom. Because the front is a flat panel, a programme built across two or three grain tones still reads as one family on a display wall, and a colour change does not change the profile or the tooling. Send us your colour references and we will run a sample front for approval before production.
Is 800 mm wide enough for a family bathroom, or should we specify 1000 mm?
800 mm is the apartment width — it fits the compact bathrooms that dominate Chilean new-build apartments and leaves the door swing and floor clear. It still takes a full-size ceramic basin and two full-width drawers, so storage is not sacrificed. For a house or a main bathroom, step up to the 1000 mm or 1200 mm version: identical body, identical finish, same drawer construction, just wider, and the double-basin layout only becomes practical from 1000 mm. Because all sizes come from the same tooling, you can mix 800 mm, 1000 mm and 1200 mm in one order at a 20-piece minimum per model, which lets one programme cover a powder room, an en-suite and a main bathroom on one container plan.
Does the unit include the tap, and what should Chilean programmes specify?
The deck is cut and drilled at the factory and the waste kit and drainer ship with the unit, in stainless steel or brass to match the handles. The tap itself is normally nominated by the importer rather than bundled, because plumbing fittings sold into a Chilean programme are usually specified by the importer's own range and approval requirements. The safest process is to send us the tap you intend to sell and we will cut and drill the top to suit it, so the rim cannot chip and no stone work happens on site. If your programme needs a different drilling pattern from the standard single-hole deck, tell us before production and we will tool it to your market standard.
How does the wall-hung fixing work on a tiled wall?
The unit hangs on a concealed steel bracket supplied with every order, so nothing is visible once it is up and the floor stays completely clear for cleaning. The wall behind must be able to take the loaded weight — masonry, or a stud wall with reinforcement behind the cabinet position. Because apartment walls behind a bathroom vanity are frequently lightweight, we supply a fixing guide with each order stating the unit weight, the bracket position and the minimum fixing specification, which lets the installer plan and reinforce the wall before the unit arrives instead of improvising on the day.
What is the MOQ, and which documents ship with a Chilean order?
MOQ is 20 pieces per model, sizes and finishes can be mixed within one order, and samples are welcome before you commit to a run. Hangzhou Fame Industry Co., Ltd. was founded in 2008, runs a 20,000 m2 factory in Zhejiang, and has supplied global top-10 building-material brands; we hold ISO9001, CE, SGS, IP44 and FSA certification. Certificate scans and SGS inspection reports are issued with your quotation or with the shipment — email tong@famechina.com or message WhatsApp +852 6159 8571, and our Hong Kong office at Room 1510, 54 Hoi Yuen Road, Kwun Tong is available if you want to review a sample in person before booking production.
