New 2026 · Magic Corner · Blind-Corner Storage

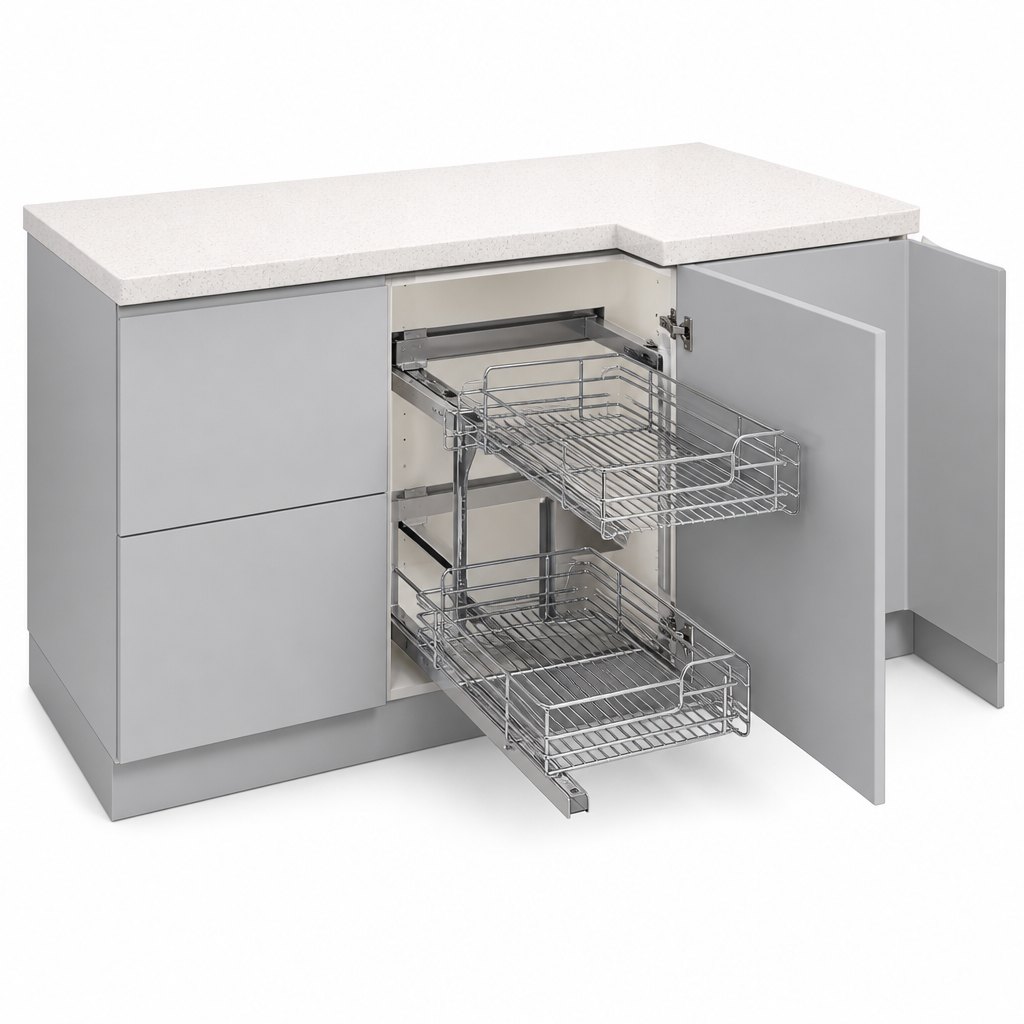

Magic Corner Carousel — Blind-Corner Pull-Out Cabinet

The corner base cabinet is the most expensive dead space in a kitchen: deep enough to hold the pots you use every day, and laid out so you can never reach the back of it. This carousel fixes that. An L-shape pull-out frame rides out of the blind corner on full-extension ball-bearing slides, carrying two tiers of chrome-wire or aluminium baskets, so the whole corner comes to you instead of you reaching in. Soft-close dampers, zinc-coated steel arms, and a 900 mm corner carcass that bolts into the same run as the rest of the kitchen — and matches the doors on either side.

Blind-corner format — a 900 × 900 mm corner base cabinet with an L-shape pull-out frame that brings the full corner out into the open
Two tiers of chrome-wire or aluminium baskets, height-adjustable, rated 30 kg per tier for pots, pans, small appliances and jars
Full-extension ball-bearing slides with a soft-close damper — cycle-tested for 50,000+ open/close cycles
Zinc-coated steel arms and frame, chrome-plated surface, no plastic load-bearing parts
Carcass in 16–18 mm E1/E0 board or plywood with moisture-sealed edges; doors 18–22 mm matched to the rest of the kitchen
Handleless or shaker front options, left- or right-hand opening, face-frame and frameless mounting brackets both supplied
KD flat-pack with edge protection, the pull-out frame packed as a separate braced module so the runners cannot be loaded in transit
Optional soft-close Blum LeMans-class mechanism on the same drilling for premium programmes

Request Factory Quote Back to All Kitchen Cabinets

SKU: FAME-KC-CORNER · MOQ: 20 pcs · Sample order available

Specifications

Cabinet type	Magic corner carousel / blind-corner pull-out base cabinet — an L-shape pull-out basket frame inside a 90° corner carcass, produced on the same carcass and door programme as the rest of the kitchen
Standard sizes	Corner carcass 900 × 900 mm (other corner sizes on request); depth 560–580 mm; pull-out frame sized to clear the door hinge and the opposing cabinet face
Carcass	E1/E0 board or plywood body, 16–18 mm, with moisture-sealed edges; interior finish matched to the run
Pull-out frame	L-shape two-tier frame on full-extension ball-bearing slides with a soft-close damper; cycle-tested for 50,000+ open/close cycles
Baskets	Two chrome-wire or aluminium tiers, height-adjustable; 30 kg load rating per tier; suited to pots, pans, small appliances and jars
Frame and finish	Zinc-coated steel arms and frame, chrome-plated surface, no plastic load-bearing parts; aluminium baskets available for a lighter frame
Door fronts	18–22 mm fronts matched to the kitchen programme — handleless slab or shaker; a wide-angle hinge is supplied so the door folds clear of the pull-out frame
Mounting	Face-frame and frameless (European-style) brackets both supplied; micro-adjustable height, depth and alignment
Hardware	Soft-close full-extension slides standard; Blum LeMans-class mechanism optional on the same drilling
Packaging	KD flat-pack cartons with edge protection; the pull-out frame and baskets packed as a separate braced module so the runners cannot be loaded in transit
Certifications	ISO9001, CE, SGS, E1/E0
MOQ	20 pieces per model; sample orders welcome for pre-production evaluation

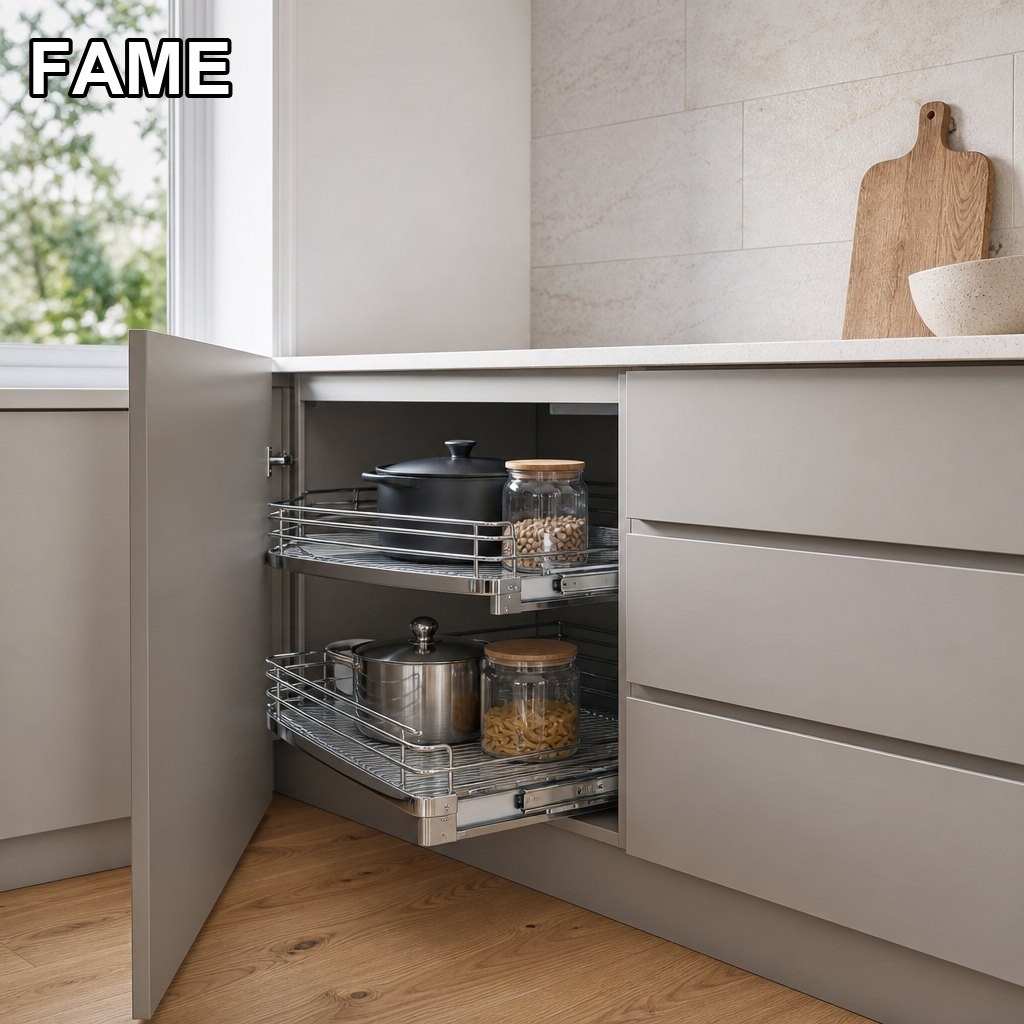

In a Real Kitchen

Every FAME kitchen program is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.

Product FAQ

Why specify a magic corner instead of an ordinary L-shape shelf?

Because an L-shape shelf keeps the deep back of the corner permanently out of reach — you own that storage but never use it. A pull-out carousel brings the whole corner out on full-extension slides, so a 900 × 900 mm corner that would otherwise hold a dead shelf becomes the most accessible storage in the kitchen. The trade is one mechanism per corner, and that mechanism is the cheapest capacity you will add to a base run.

How much weight will the baskets carry, and how long do the slides last?

Plan on 30 kg per tier, which covers pots, pans, small appliances and jars with margin. The frame rides on full-extension ball-bearing slides with a soft-close damper, cycle-tested beyond 50,000 open/close cycles. If your programme stores heavier items — cast-iron cookware, bulk bottles — tell us and we specify the basket gauge and slide rating up from there.

Will the carousel fit face-frame and frameless cabinets?

Yes. We supply both face-frame and frameless (European-style) mounting brackets, with micro-adjustment on height, depth and alignment, and a wide-angle hinge so the door folds clear of the frame. We also cut left- and right-hand openings from one production set, so a run can be mirrored without new tooling.

What is the MOQ and can we order a sample first?

Our MOQ is 20 pieces per model, and sample orders are welcome for pre-production evaluation before you commit to a full programme. We run a 20,000 m² factory and have supplied the world's top-10 building-material brands since 2009, so repeat kitchen programmes hold production slots.
