Kitchen Open Shelving with LED — Oak Wall Shelves, Recessed Light Profile — FAME kitchen cabinet manufacturer
New 2026 · Open Shelving · Integrated LED · Oak Veneer

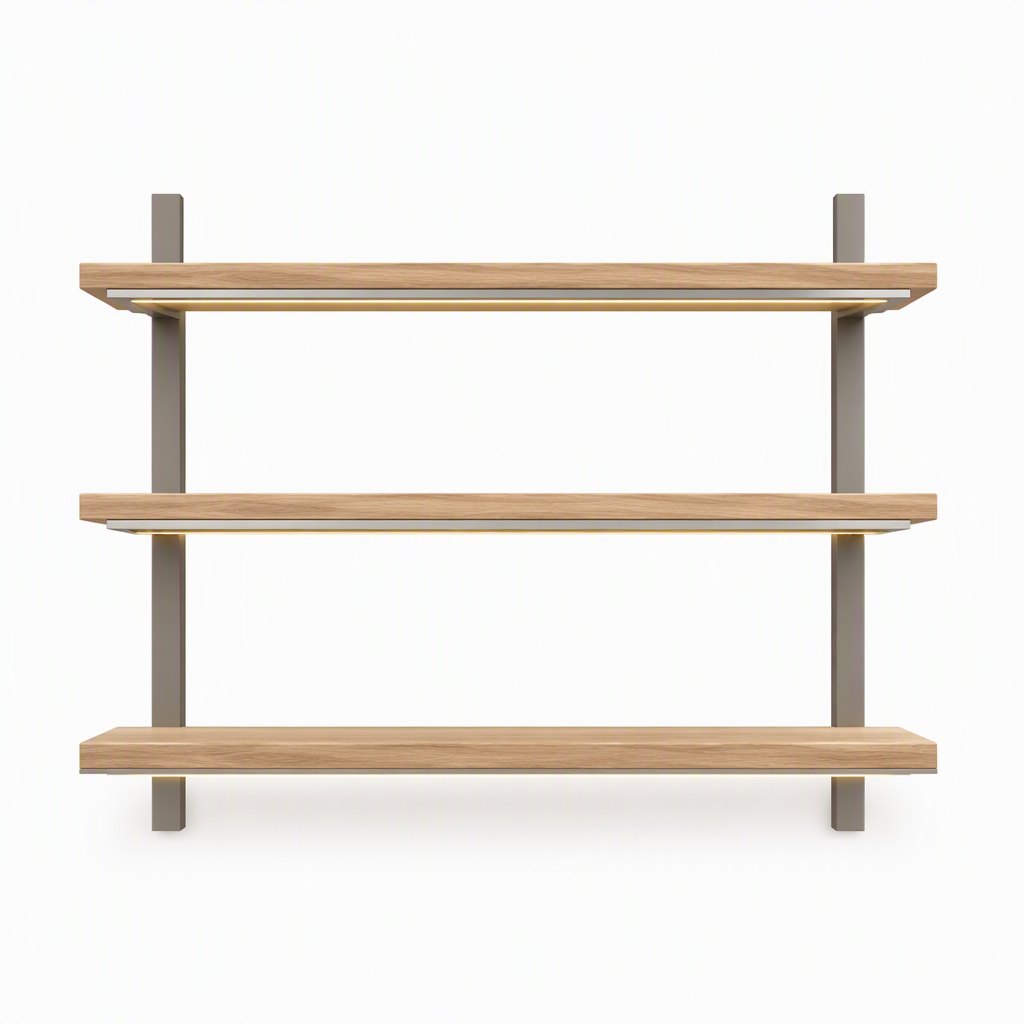

Kitchen Open Shelving with LED — Oak Wall Shelves, Recessed Light Profile

Open shelving either finishes a kitchen run or ruins it, and the difference is almost never the styling — it is whether the shelf carries its own light. A shelf mounted under a cabinet with no integrated source turns into a dark slot that shows every shadow of the crockery on it; a shelf with a 30 mm aluminium profile recessed into its front underside reads as a lit display and disappears into the wall plane. This programme takes the second route, on a concealed cleat that leaves no visible bracket on the face.

  • Shelf boards 25 mm thick x 250 mm deep, in 600 / 900 / 1200 mm lengths — a 250 mm depth takes a dinner plate stack and a jar row without projecting into the worktop sight line
  • 18 mm plywood core with a 0.6 mm white-oak veneer and matching ABS edge, so a 1200 mm shelf stays straight across its span where a solid-oak board of the same thickness would bow
  • 30 mm recessed aluminium LED profile set flush into the front underside of each shelf at 2700K, 8 W/m, CRI 90+ — warm enough to sit with oak, high enough CRI that food and ceramics keep their colour
  • 12 V DC constant-voltage system with a remote driver sized for up to 8 m of profile per channel; dimmable on a trailing-edge dimmer, or switched per shelf group
  • Concealed 6 mm steel cleat with a levelling cam at each end — no visible bracket on the shelf face, and 3 mm of vertical adjustment after the wall is drilled
  • Rated 25 kg per shelf on a masonry wall with the supplied anchors; plasterboard installations use the same cleat on a timber batten or a resin-anchored toggle set
  • Supplied as a set with the shelf, cleat, driver, pre-terminated 2 m lead and a drilling template; 20 pcs per model MOQ, mixed lengths allowed in one container
Request Factory Quote Back to All Kitchen Cabinets

SKU: FAME-KC-OSL · MOQ: 20 pcs · Sample order available

Specifications

Programme scopeWall-mounted open shelving for the kitchen — shelf boards, concealed cleats, integrated LED profile, driver and leads; designed to sit on the same door and colour programme as the matching base and tall units
Standard sizes600 / 900 / 1200 mm L x 250 mm D x 25 mm T as standard; 1500 mm and 1800 mm on the same profile with a mid-span cleat; custom lengths to drawing
Shelf construction18 mm plywood core, 0.6 mm white-oak veneer both faces, matching ABS edge banding; lacquered or veneered finish to match door programme
Shelf thickness25 mm nominal; 38 mm on the heavier display variant, using the same 30 mm LED profile recess
LED profile30 mm wide recessed aluminium extrusion, anodised silver or black, set flush into the front underside of the shelf; opal polycarbonate diffuser, no visible diode dots
Light specification2700K as standard, 3000K and 4000K on request; 8 W/m; CRI 90+; 12 V DC constant voltage; dimmable with a trailing-edge dimmer
Driver and wiringRemote 12 V driver sized to 8 m of profile per channel; 2 m pre-terminated lead per shelf, plug-and-play connectors; driver housing for cabinet or ceiling void
Wall fixing6 mm steel cleat with levelling cam, concealed behind the shelf face; masonry anchors supplied as standard; plasterboard and stud kits on request
Load rating25 kg per shelf on masonry with supplied anchors; 15 kg per shelf on plasterboard with a timber batten or resin toggle set
Finish rangeWhite-oak veneer as standard; walnut veneer, matt lacquer in RAL or Farrow & Ball colours, and full door-programme colour matching from 50 pcs
PackagingIndividual 5-layer carton with foam end caps, LED profile pre-fitted and tested; driver packed separately in the same carton; 1200 mm shelf carton approx. 1260 x 300 x 90 mm, 9 kg gross
MOQ and compliance20 pcs per model, mixed lengths allowed; ISO9001, CE, SGS and FSA factory certifications; LED system supplied with CE-marked driver and IP20 rating for dry kitchen zones

In a Real Kitchen

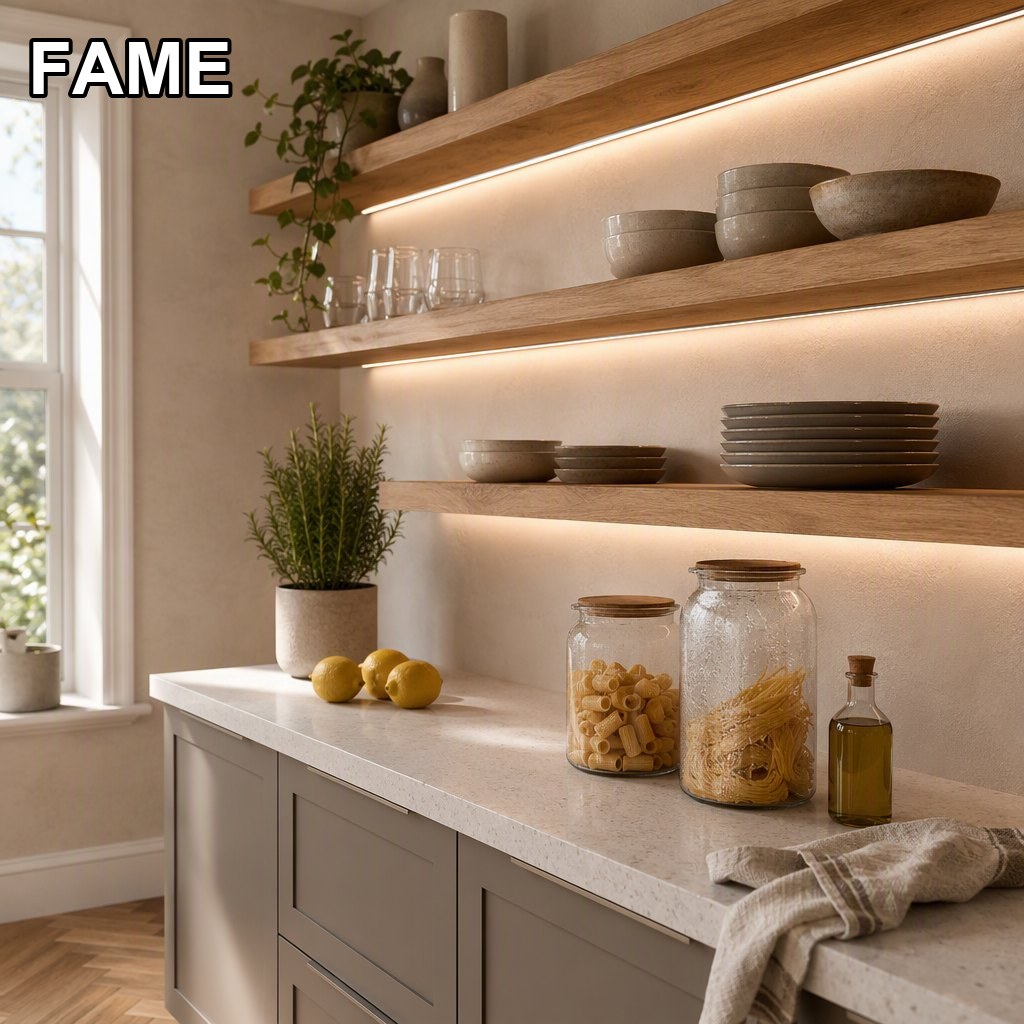

Kitchen Open Shelving with LED — Oak Wall Shelves, Recessed Light Profile in a real kitchen setting

Every FAME kitchen program is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.

Product FAQ

Is open shelving actually practical in a working kitchen, or is it purely decorative?
It is practical within a defined zone. The rule we specify to clients is: open shelving above the worktop for daily items within arm's reach, closed cabinets for everything else. The failure mode people complain about is grease film on exposed crockery near the hob, which is a positioning problem, not a shelving problem — keep the shelf run at least 600 mm from the hob centre line and out of the direct splash path of the sink. Where the shelf sits between tall units and away from both, it holds up as daily storage.
Why put the LED inside the shelf instead of an LED strip stuck to the wall?
A surface-mounted strip on the wall behind the shelf lights the wall, not the shelf contents, and the diode dots reflect in every plate and glass. Milling a 30 mm aluminium profile into the front underside of a 25 mm board puts the light source forward of the contents and behind a diffuser, so the shelf reads as evenly lit with no dot pattern and no glare at eye level. It also means the profile, wiring and driver are all serviceable from the front by lifting the shelf off its cleat.
What LED colour temperature should we specify for an oak kitchen?
2700K for oak, walnut and any warm wood finish — 3000K starts to cool the timber and 4000K makes oak look grey and clinical. We default to 2700K at CRI 90+ because the lower CRI products common at this price point render reds and greens poorly, which is visible on food and on coloured ceramics. If the kitchen has a cooler stone worktop and a pale grey door, 3000K is the better match, and we can split the order across both temperatures on the same driver spec.
Will a 1200 mm shelf sag under plates and jars?
Not on this construction. A 1200 mm span in solid oak at 25 mm bows visibly under a full plate stack within a year; an 18 mm plywood core with a 0.6 mm veneer and a front edge band holds its line because the ply layers carry the load across the grain. The cleat fixes at both ends with a levelling cam, so the shelf can be brought back to level after installation. Above 1200 mm we add a mid-span cleat as standard rather than relying on thickness alone.
How does the electrical side work for a UK or EU installation?
The LED system is 12 V DC, so the shelf itself carries only a pre-terminated 2 m lead that plugs into a remote driver; no mains voltage runs through the shelving. The driver is CE-marked, sized for up to 8 m of profile per channel, and sits in an adjacent cabinet or a ceiling void with an accessible connection point. The profile is IP20 for dry kitchen zones — for a shelf within the splash zone of a shower or a wet room, we supply an IP44 variant instead.

Quote This Kitchen Program

Tell us layout, finish and destination port — we'll come back with pricing, lead time and a sample proposal.

Request a Quote
