New 2026 · Sink Base · Under-Sink Storage

Sink Base Cabinet — Pull-Out Waste Sorting, Under-Sink Drawers

The sink base is the one base cabinet every kitchen has and almost every kitchen wastes. A standard drawer base cannot go there — the trap and the supply lines own the middle of the box — so it ships as a door and a shelf, and everything a household actually keeps under the sink ends up in a damp pile on the bottom panel. This unit is built around the plumbing instead of in spite of it: a stainless two-bin waste module pulls out on full-extension runners at the bottom, two chrome-wire organiser drawers stack beside the pipe void at heights that clear the trap, and the back of the cabinet stays open so a P-trap can be serviced without emptying the unit. Same 18 mm handleless door and same carcass programme as the rest of the run, so it disappears into the kitchen line.

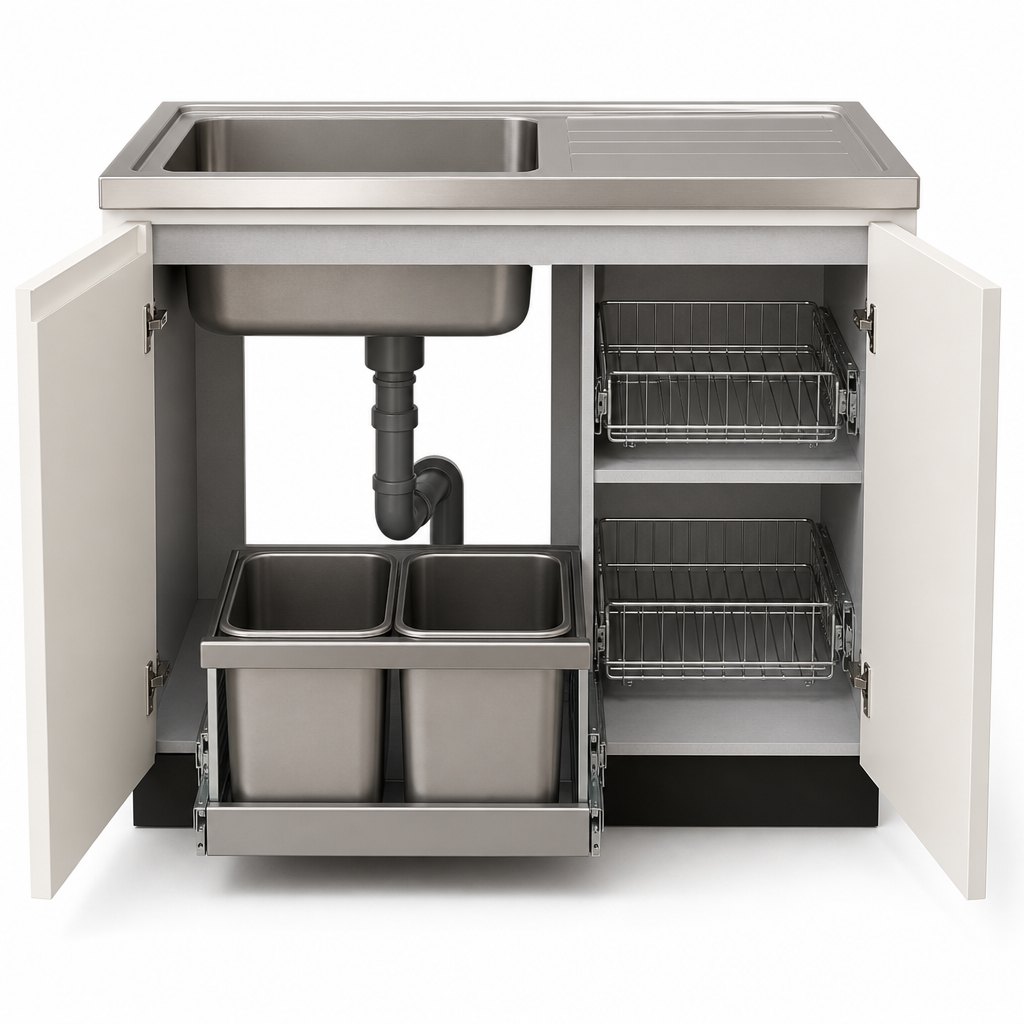

800 mm under-sink base carcass with the waste module at the bottom and two wire organiser drawers stacked beside the pipe void — usable storage where a standard base gives you a shelf and a draught
Stainless two-bin pull-out waste module on full-extension runners with soft-close — wet and dry separation at the counter, and the lid clears under the trap
Chrome-wire organiser drawers height-set to clear a standard P-trap, with a sealed service void at the back so the plumbing stays reachable without dismantling the storage
18 mm handleless slab door with a finger-groove top edge; shaker, lacquer, acrylic or PVC-membrane fronts on the same carcass and drilling
16–18 mm E1/E0 board or plywood carcass with moisture-sealed edges — the panel that takes the splashes is the one we seal
Adjustable feet and a colour-matched toe kick; the unit lines up with the rest of the base run at 560–580 mm depth
Sink cut-out, tap drilling and countertop prepared to your specification — undermount steel, inset ceramic or composite, one tap hole or three
Mirrored left- and right-hand layouts from one production set, so a run that turns the sink does not need new tooling
KD flat-pack with edge protection; the waste module and runners travel as a separate braced carton so nothing is loaded in transit

Request Factory Quote Back to All Kitchen Cabinets

SKU: FAME-KC-SINK · MOQ: 20 pcs · Sample order available

Specifications

Cabinet type	Under-sink base cabinet — a base carcass laid out around the trap with a bottom-mounted pull-out waste module and stacked wire drawers, produced on the same carcass and door programme as the rest of the kitchen
Standard sizes	600 / 800 / 900 mm wide; 800 mm standard; depth 560–580 mm; height to your plinth and countertop build-up
Carcass	E1/E0 board or plywood body, 16–18 mm, with moisture-sealed edges and a sealed service void at the back; interior in light grey or matched to the run
Under-sink storage	Stainless two-bin pull-out waste module on full-extension runners with soft-close; two chrome-wire organiser drawers height-set to clear a standard P-trap; both removable without tools
Door fronts	18 mm fronts — handleless slab with a finger-groove top edge as standard; shaker, lacquer, acrylic or PVC-membrane finishes on the same drilling
Sink and tap	Sink cut-out and tap drilling to your specification — undermount stainless, inset ceramic or composite; single-hole or three-hole drilling; countertop in quartz, granite or artificial stone
Hardware	Soft-close full-extension runners standard; DTC or Blum hardware; adjustable feet and a colour-matched toe kick supplied
Handing	Left- and right-hand layouts cut from one production set; face-frame and frameless (European-style) mounting both supported
Packaging	KD flat-pack cartons with edge protection; the waste module, runners and wire drawers packed as a separate braced carton so the runners cannot be loaded in transit
Certifications	ISO9001, CE, SGS, E1/E0
MOQ	20 pieces per model; sample orders welcome for pre-production evaluation

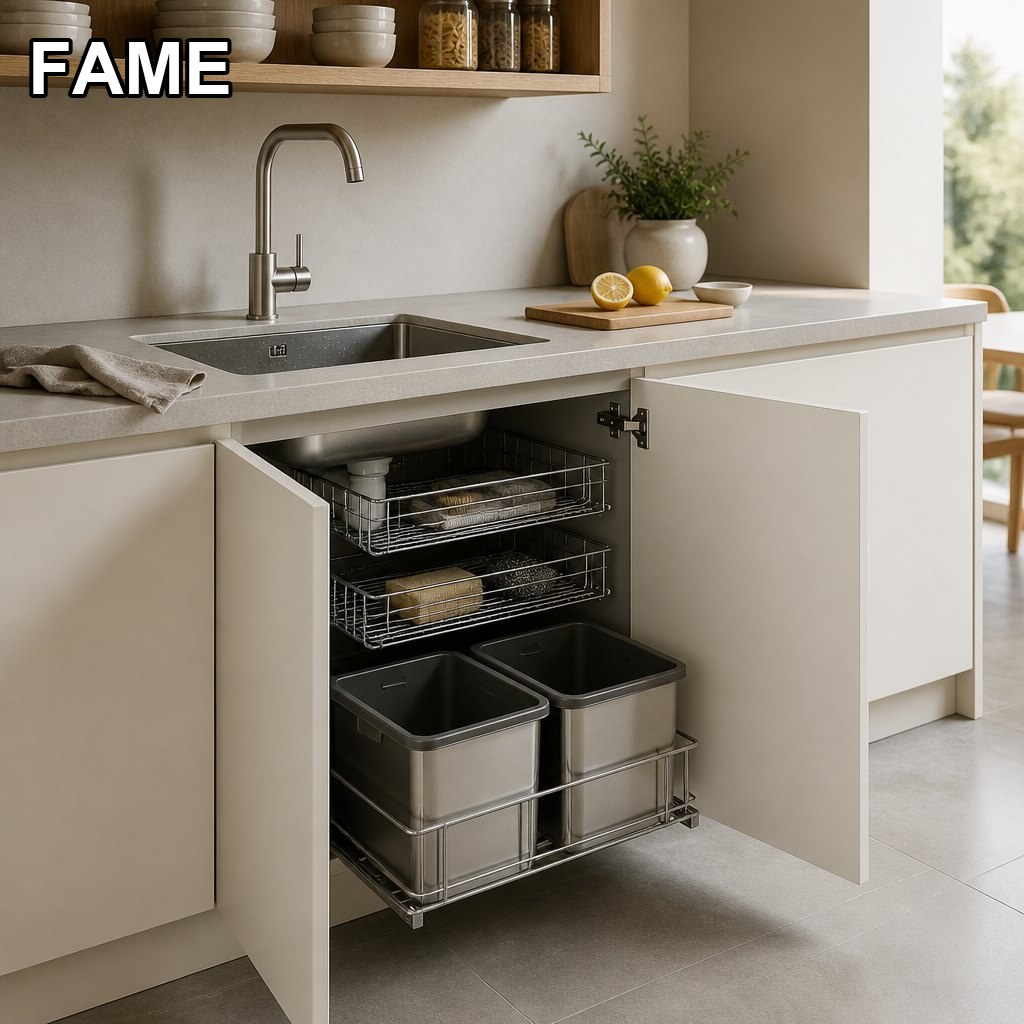

In a Real Kitchen

Every FAME kitchen program is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.

Product FAQ

Why specify a dedicated sink base instead of a standard drawer base?

Because a standard drawer base cannot actually be used at the sink. The trap and the supply lines sit in the middle of the box, so the drawer either stops short, ships as a dummy front, or is deleted for a door and a shelf — and the household ends up storing cleaning products in a heap on the bottom panel. A dedicated sink base plans the cavity instead: waste sorting pulls out at the bottom where there is full depth, wire drawers stack to the side of the pipe void at heights that clear the trap, and the back stays open for service. It costs one mechanism more than a shelf and returns the most-used cabinet in the kitchen.

Will the pull-out waste module fit under a standard P-trap?

Yes — that is what the layout is drawn around. The waste module runs at the bottom of the carcass on full-extension runners, below the trap outlet, and the two wire drawers are height-adjustable so they can be set to clear the trap body and the supply valve. Because the module pulls fully out, you load it from the front of the counter rather than reaching into the cabinet, and the service void at the back means a leaking trap can be reached without emptying the storage first. Send us your sink and trap drawing and we set the shelf heights on the production drawing.

What is the difference between the 600, 800 and 900 mm versions?

Width, and how much side storage survives next to the pipe void. At 600 mm the cabinet is essentially the sink, the waste module and one narrow drawer column — the right answer for a compact apartment run. At 800 mm, the standard, you get the waste module plus two wire drawers with real usable width. At 900 mm there is room for a deeper drawer column or a second pull-out. All three use the same carcass, door programme and waste module, so a range quotes as one order rather than three.

What is the MOQ and can we order a sample first?

Our MOQ is 20 pieces per model, and sample orders are welcome for pre-production evaluation before you commit to a full programme. We run a 20,000 m2 factory and have supplied the world's top-10 building-material brands since 2009, so repeat kitchen programmes hold production slots. Tell us the sink, tap and countertop you are pairing with the cabinet and we quote the unit complete with the cut-outs already drilled.
