New 2026 · Wall-Hung · LED Mirror · Side Column

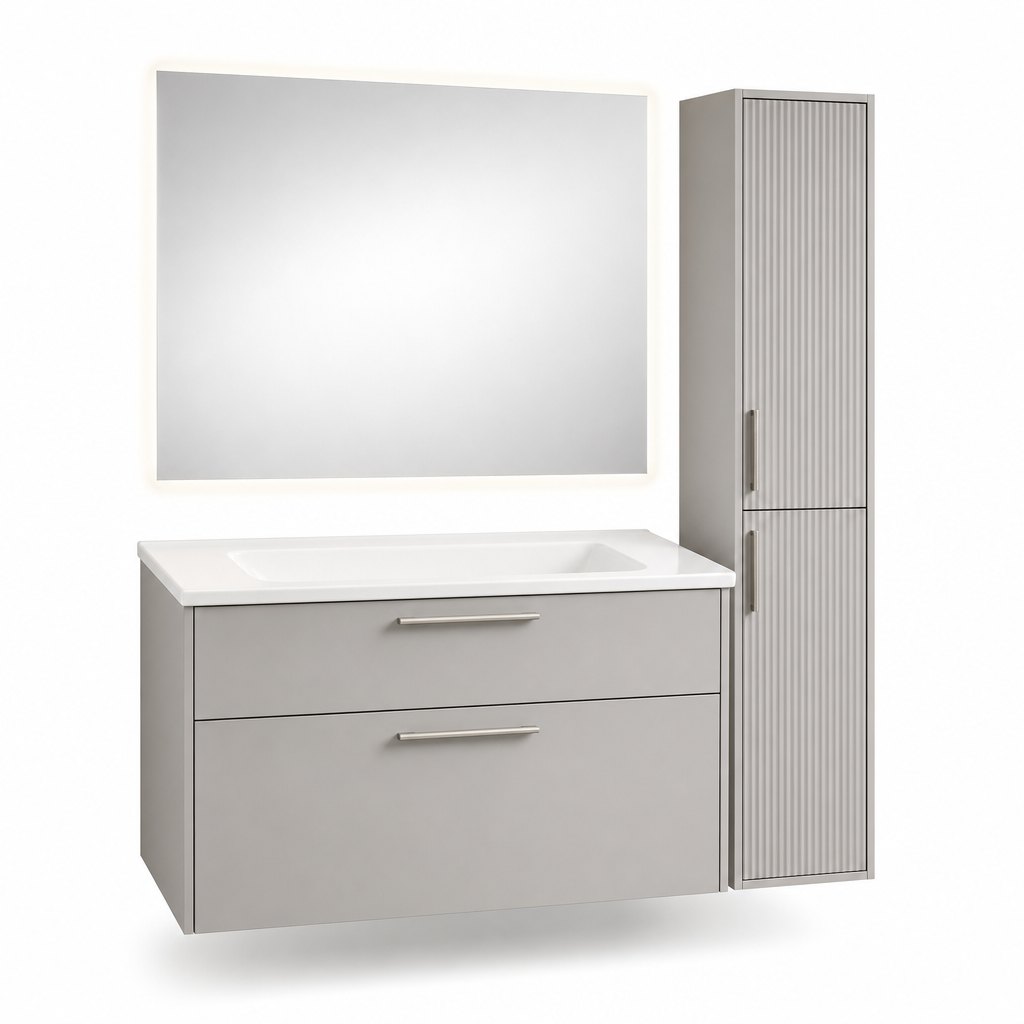

800 mm Wall-Hung Vanity with Edge-Lit LED Mirror and Fluted Side Column

A Chilean apartment bathroom is typically 2.2 to 2.8 square metres, and the wall you can actually build on is 1.2 to 1.5 metres wide. That is the constraint this set is drawn around: an 800 mm basin cabinet, a 300 mm fluted column standing beside it, and a mirror that carries its own light because there is no ceiling downlight over the basin in most of these units. The column is the part that changes how the room works. It takes the towels, the cleaning bottles and the hairdryer off the worktop and off the floor, which is what makes an 800 mm cabinet livable rather than cramped. Everything is wall-hung, so the floor reads continuous and a mop goes under the carcass.

800 mm W x 460 mm D x 500 mm H basin cabinet plus a separate 300 mm W x 300 mm D x 1200 mm H fluted column, so the full wall run is 1100 mm and fits a 1.2 m bathroom wall with a 100 mm service gap
Seamless white glazed ceramic integrated basin with a shallow rectangular bowl, pre-drilled single tap hole and no front overflow slot — the front face stays clean and there is no trap to wipe around
Ash-grey matte lacquer fronts (a warm light grey, roughly RAL 7047 territory) with a fine vertical flute on the column doors and a smooth face on the drawer bank, so the two elements read as one family without matching exactly
Full-extension soft-close drawer runners rated 30 kg with a concealed undermount slide, plus a lower flap door on adjustable soft-close hinges — the drawer takes the daily items, the flap takes the bulky bottles
Waterproof 18 mm plywood carcass with sealed edges and an 8 mm moisture-resistant back panel, specified for coastal Chilean humidity rather than standard MDF
5 mm frameless mirror with a 20 mm frosted 4000K LED halo bonded behind the edge — no visible diode strip, no shadow line on the wall, 12V driver in the column
Two slim brushed-nickel bar pulls, 128 mm centres, fitted horizontally on the drawer and vertically on the column; Blum hardware upgrade available on the same drilling pattern

Request Factory Quote Back to All Bathroom Cabinets

SKU: FAME-CL-1022 · MOQ: 20 pcs · Sample order available

Specifications

Set composition	800 mm basin cabinet + 300 mm side column + 800 mm LED mirror; the three items ship as one set but are quoted separately so a project can drop the column for a tighter wall
Basin cabinet dimensions	800 mm W x 460 mm D x 500 mm H; 600 / 900 / 1000 mm widths on the same door programme; 500 mm depth on request for narrow bathrooms
Side column dimensions	300 mm W x 300 mm D x 1200 mm H, two plain fluted doors with one adjustable shelf and one fixed shelf; 1500 mm and 1800 mm heights available
Carcass	18 mm waterproof plywood with sealed ABS edges, 8 mm moisture-resistant back panel; 18 mm E1 MFC available as a lower-cost option for dry inland projects
Fronts and finish	18 mm MDF with ash-grey matte lacquer, fine vertical flute on the column doors (6 mm pitch, 2 mm depth); gloss, super-matte and custom RAL from 50 pcs per colour
Basin	Seamless white glazed ceramic, integrated countertop basin, 480 mm x 340 mm x 120 mm bowl, single 35 mm tap hole; sintered stone and solid-surface tops available on the same carcass
Mirror and lighting	5 mm silver mirror, copper-free edge, 20 mm frosted 4000K LED halo at 9 W/m, CRI 90+, 12V DC with a remote driver housed in the column; 3000K and touch-sensor switching on request
Hardware	Full-extension soft-close drawer runners at 30 kg rated load; soft-close 110 degree hinges on the flap and column doors; brushed-nickel bar pulls at 128 mm centres; Blum upgrade optional
Installation	Wall-hung on a steel hanging rail with two M8 anchor points per cabinet; the column carries its own rail; all fixings, template and drilling diagram supplied, no plinth and no legs
Packaging	Two cartons per set — 860 x 520 x 560 mm at 26 kg gross for the cabinet, 1240 x 340 x 340 mm at 17 kg gross for the column and mirror; foam corner blocks, 5-layer board, mirror in a separate rigid insert
MOQ and lead time	20 pcs per model, mixed widths and finishes allowed within the 20; sample 7 to 10 days, production 30 to 35 days, FOB Ningbo or CIF San Antonio / Valparaiso
Compliance	ISO9001, CE, SGS and FSA factory certifications; IP44 rating on the LED mirror for bathroom zone 2; FSC-certified plywood available on request

Verification & Compliance — Evidence Behind Every Claim

Every FAME unit is built and inspected to the same standards we ship to the world's top-10 bathroom brands. Each claim below carries a verifiable anchor — certificates and inspection reports are available for review on request or during factory audits.

ISO9001 Quality management system CE EU conformity marking SGS Third-party inspected IP44 Splash & moisture resistance per IEC 60529 FSA Forest & safety assurance

IP44 moisture protection	Rated to IEC 60529 (splash-proof, protection against objects >1mm). Test method and report available on request.
Soft-close hardware	Blum optional — see Blum official specifications.
Company credentials	Founded 2009 · 20,000 m² factory · supplier to global top-10 bathroom brands. See About FAME and Certifications.
Third-party verification	SGS inspection reports and certificate scans available with your quotation — request them here.

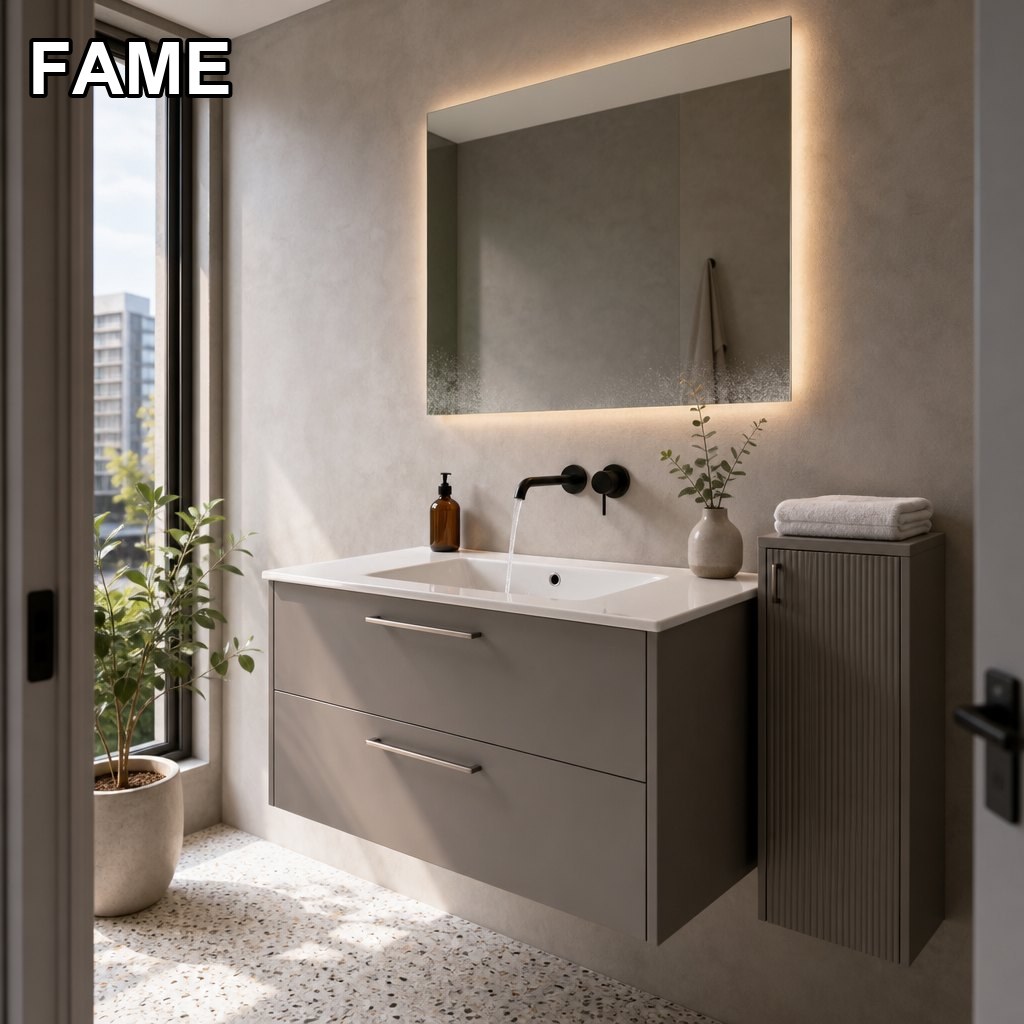

In a Real Bathroom

Every FAME unit is produced in our 20,000 m² factory, inspected against the same standards we ship to the world's top-10 bathroom brands, and container-optimized for your program.

Product FAQ

Why specify an 800 mm vanity rather than 900 mm for a Chilean apartment?

Because the wall run, not the cabinet, is the limit. In a typical 2.4 m2 bathroom the basin wall is 1.2 to 1.5 m and the shower or the door swing eats 400 to 500 mm of it. An 800 mm cabinet plus a 300 mm column uses 1100 mm and still leaves a service gap; a 900 mm cabinet leaves nothing for storage, so towels end up on the floor or on a plastic rack. If the wall is genuinely 1.5 m clear, the same door programme is available at 900 and 1000 mm with no change to the design language.

Is the fluted column structural or decorative?

Decorative in form, but it does real work. It is a separate wall-hung carcass on its own hanging rail, so it can be installed 20 mm off the cabinet, butted tight, or left out entirely. The flute is a 6 mm pitch, 2 mm deep routed pattern in 18 mm MDF, lacquered with the same ash-grey as the cabinet. It hides finger marks better than a flat door, which matters on a surface that gets touched every morning.

How is the LED mirror powered, and is it safe in a bathroom?

The mirror runs on 12V. A remote driver sits inside the column and connects to the 240V circuit, so the mirror itself only carries a low-voltage lead. The LED module is rated IP44, which covers bathroom zone 2 — the area around the basin outside the 600 mm zone 1 circle around a shower or bath. In practice the electrician provides a switched feed to the driver location during first fix. If the bathroom has no spare circuit, we supply a version with a plug-in driver and an inline switch.

Does a plywood carcass really matter in Chile?

On the coast, yes. Valparaiso, Vina del Mar and Concepcion run high year-round humidity, and the failure mode we see on cheap imports is not the door finish — it is the carcass edge swelling and the back panel delaminating within two winters. Sealed 18 mm plywood with a moisture-resistant back panel costs roughly 12 to 15 percent more than E1 MFC and removes that failure. For inland dry-climate projects such as Santiago or Calama, MFC is a legitimate cost saving and we quote both.

What does a 20-piece order look like in practice?

Twenty pieces can be split across 600, 800, 900 and 1000 mm cabinet widths, across column heights, and across two finishes, with custom RAL from 50 pcs in one colour. Mirrors are counted per cabinet. Because mirror glass is the packaging risk, we recommend one spare mirror per 20 units for site breakage. Sample lead time is 7 to 10 days and production 30 to 35 days, FOB Ningbo or CIF to San Antonio and Valparaiso.
